Y800 6000 kw 큰 농형 고전압 일렉트릭 모터 1500r/ 민 IP54

제품 상세 정보:

원래 장소:	중국
브랜드 이름:	THMotor
인증:	CE
모델 번호:	Y800-4

결제 및 배송 조건:

최소 주문 수량:	1개 세트
가격:	USD 20000-100000
포장 세부 사항:	내항성이 있는 포장
배달 시간:	70DAYS
공급 능력:	100SET/YEAR

상세 제품 설명

상품 이름:	태도를 회전시키는 Y800 큰 농형 고전압 일렉트릭 모터	파워 레인지:	400-6000kw
막대기:	2,4,6,8,12,16	냉각 방식:	IC01、IC411、IC611
전압:	6000v-11000v	속도 범위:	100rpm-3600rpm
주파수:	50 hz,60hz	IP 비율:	IP23, IP54,IP55
강조하다:	민 농형 일렉트릭 모터 1500r/ , 고압 모터 IP54 , Y800 농형 유도 전동기

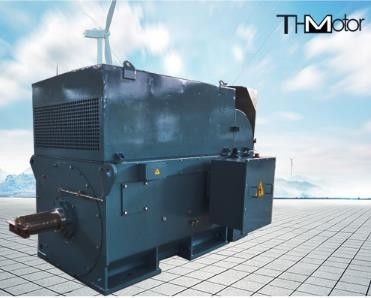

태도를 회전시키는 Y800 큰 농형 고전압 일렉트릭 모터

제품 개관

큰 농형 고전압 일렉트릭 모터는 강한 다기능성을 가지고 있고, 주류 제품이 되었으며, 그것이 원형 시대에 뒤떨어진 JK 직권 전동기를 대체할 수 있습니다. 모터는 합리적 구조물로 모든 강철판에 의해 용접되고 좋은 방열 성능과 공대공 냉각기가 상부에 설치됩니다.

품질 규격

다른 프레임에서 데이터와 테이블 하단으로서의 RPM

모델	힘 (kW)	속도 (r/min)	정격 전류 (A)	효율적입니다 (%)	P,F	잠긴 경향	잠긴 토크	Tm
Y710-6-4	2500	1500	175.2	95.8	0.86	7.0	0.5	1.8
Y710-7-4	2800		196.0	95.9
Y710-8-4	3150		220.3	96.0
Y710-9-4	3550		248.0	96.1
Y800-6-4	4000		275.9	96.2	0.87
Y800-7-4	4500		310.4	96.2
Y800-8-4	5000		344.5	96.3
Y800-9-4	5600		385.9	96.3
Y900-6-4	6300		433.7	96.4
Y900-7-4	7100		488.2	96.5
Y900-8-4	8000		549.5	96.6
Y1000-6-4	9000		577.5	96.7
Y1000-7-4	10000		685.5	96.8
Y710-6-6	2000	1000	140.6	95.5	0.86	6.5	0.6	1.8
Y710-7-6	2240		157.3	95.6
Y710-8-6	2500		175.4	95.7
Y800-6-6	2800		196.2	95.8
Y800-7-6	3150		220.5	95.9
Y800-8-6	3550		248.2	96.0
Y900-6-6	4000		279.4	96.1
Y900-7-6	4500		314.0	96.1
Y900-8-6	5000		344.9	96.2	0.87
Y900-9-6	5600		386.3	96.2
Y1000-6-6	6300		434.1	96.3
Y1000-7-6	7100		488.7	96.4
Y100-8-6	8000		550.1	96.5
Y710-6-8	1600	750	111.8	95.0	0.82	6.5	0.6	1.8
Y710-7-8	1800		128.5	95.1
Y710-8-8	2000		142.7	95.2
Y710-9-8	2240		159.6	95.3
Y800--6-8	2500		178.0	95.4	0.83
Y800-7-8	2800		199.1	95.5
Y900-6-8	3150		223.8	95.6
Y900-7-8	3550		251.9	95.7	0.84
Y1000-6-8	4000		280.3	95.8
Y1000-7-8	4500		315.0	95.9
Y1000-8-8	5000		349.6	96.0
Y710-6-10	1250	600	95.5	94.5	0.8	6.0	0.6	1.8
Y710-7-10	1400		106.8	94.6
Y710-8-10	1600		109.3	94.7
Y800-6-10	1800		135.3	94.8	0.81
Y800-7-10	2000		150.2	94.9
Y800-8-10	2240		168.0	95.0
Y900-6-10	2500		185.1	95.1	0.82
Y900-7-10	2800		207.1	95.2	0.82
Y1000-6-10	3150		229.9	95.3	0.83
Y1000-7-10	3550		258.8	95.4	0.83
Y1000-6-12	2500	500	190.3	94.8	0.8
Y1000-7-12	2800		212.9	94.9
Y1000-8-12	3150		239.3	95.0
Y1000-9-12	3550		269.4	95.1
Y710-1-4	3150	1500	361.8	96.3	0.87	6.5	0.5	1.8
Y710-2-4	3550		407.7	96.3
Y710-3-4	400		458.9	96.4
Y710-4-4	4500		516.9	96.4
Y800-1-4	5000		566.6	96.5	0.88
Y800-2-4	5600		634.6	96.5
Y800-3-4	6300		713.2	96.6
Y900-1-4	7100		802.9	96.7
Y900-2-4	8000		903.7	96.8
Y900-3-4	9000		1015.6	96.9
Y710-1-6	2240	1000	261.0	96.0	0.86	6.5	0.6	1.8
Y710-2-6	2500		291.1	96.1
Y710-3-6	2800		326.0	96.1
Y710-4-6	3150		366.4	96.2
Y800-1-6	3550		412.9	96.2
Y800-2-6	4000		465.3	96.3
Y800-3-6	4500		522.9	96.3
Y800-4-6	5000		580.4	96.4
Y900-1-6	5600		642.5	96.4	0.87
Y900-2-6	6300		722.1	96.5
Y900-3-6	7100		812.9	96.6
Y1000-1-6	8000		915.1	96.7
Y1000-2-6	9000		1028.4	96.8
Y1000-3-6	1000		1141.5	96.9
Y710-1-8	1800	750	213.6	95.4	0.85	6.5	0.6	1.8
Y710-2-8	2000		237.1	95.5
Y710-3-8	2240		265.3	95.6
Y800-1-8	2500		295.7	95.7
Y800-2-8	2800		330.9	95.8
Y800-3-8	3150		372.2	95.8
Y800-4-8	3550		419.1	95.9
Y900-1-8	4000		471.7	96.0	0.86
Y900-2-8	4500		514.0	96.1
Y900-3-8	5000		582.2	96.2
Y1000-1-8	5600		651.4	96.2
Y1000-2-8	6300		732.0	96.3
Y1000-3-8	7100		824.1	96.4
Y1000-4-8	8000		927.6	96.5
Y710-1-10	1600	600	195.3	96.0	0.83	6.0
Y710-2-10	1800	600	219.4	95.1	0.83	6.0
Y7103-10	2000	600	243.6	95.2	0.83	6.0	0.6	1.8
Y800-1-10	2240		272.5	95.3
Y800-2-10	2500		303.8	95.4
Y800-3-10	2800		339.9	95.5
Y900-1-10	3150		377.5	95.6	0.84
Y900-2-10	3550		425.0	95.7
Y900-3-10	4000		478.3	95.8
Y900-4-10	4500		538.1	95.8
1000-1-10	5000		597.3	95.9
Y1000-2-10	5600		668.9	95.9
Y1000-3-10	6300		751.8	96
Y1000-4-10	7100		847.2	96
Y710-1-12	1120	500	144.4	94.5	0.79	6.0	0.6	1.8
Y710-2-12	1250		161.0	94.6
Y710-3-12	1400		180.1	94.7
Y800-1-12	1600		203.2	94.7	0.80
Y800-2-12	1800		228.4	94.8
Y800-3-12	2000		253.5	94.9
Y800-4-12	2240		283.6	95.0
Y900-1-12	2500		312.0	95.2	0.81
Y900-2-12	2800		349.0	95.3
Y900-3-12	3150		392.3	95.4
Y1000-1-12	3550		441.6	95.5
Y1000-2-12	4000		497.1	95.6
Y1000-3-12	4500		559.2	95.6
Y1000-4-12	5000		620.7	95.7
Y710-1-16	630	375	89.2	93.1	0.73	6.0	0.6	1.8
Y710-2-16	710		100.3	93.3
Y710-3-16	800		112.9	93.4
Y710-4-16	900		126.9	93.5
Y800-1-16	1000		138.9	93.6	0.74
Y800-2-16	1120		155.4	93.7
Y800-3-16	1250		173.3	93.8
Y800-4-16	1400	375	193.9	93.9
Y900-1-16	1600		218.4	94.0	0.75	6.0	0.6	1.8
Y900-2-16	1800		245.4	94.1
Y900-3-16	2000		272.4	94.2
Y1000-1-16	2240		304.8	94.3
Y1000-2-16	2500		339.8	94.4
Y1000-3-16	2800		380.2	94.5
